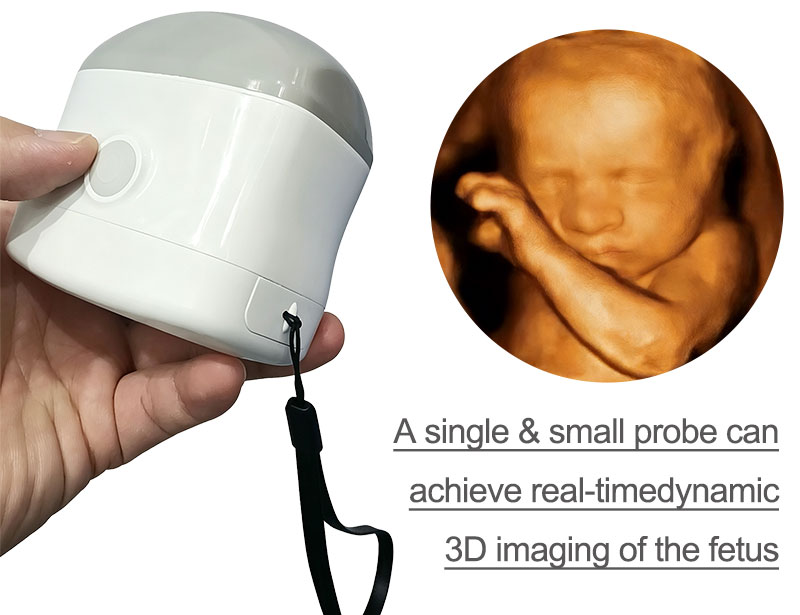

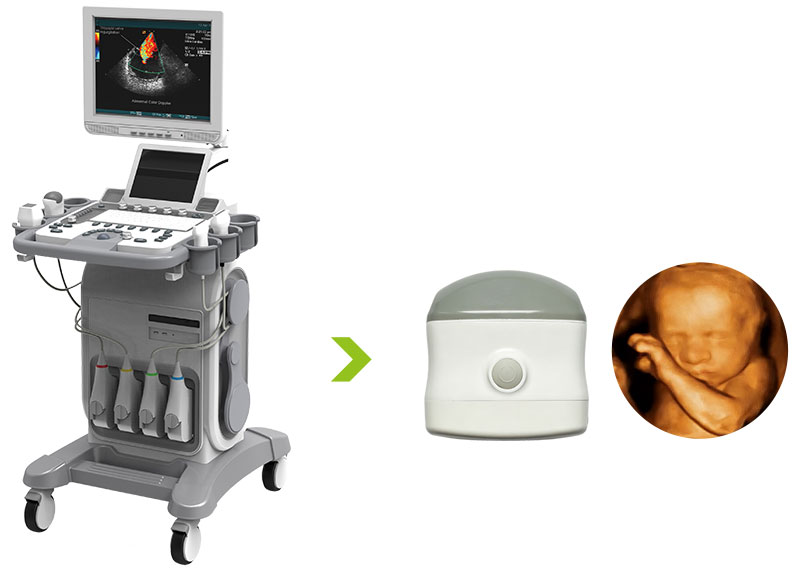

From the previous requirement of using large high-end ultrasound equipment to achieve 4D imaging, it has been transformed into a small probe that can achieve it

                             Ultrasonic imaging camera, capable of taking photos/videos of fetuses inside the body              Conventional cameras can only take photos of the exterior

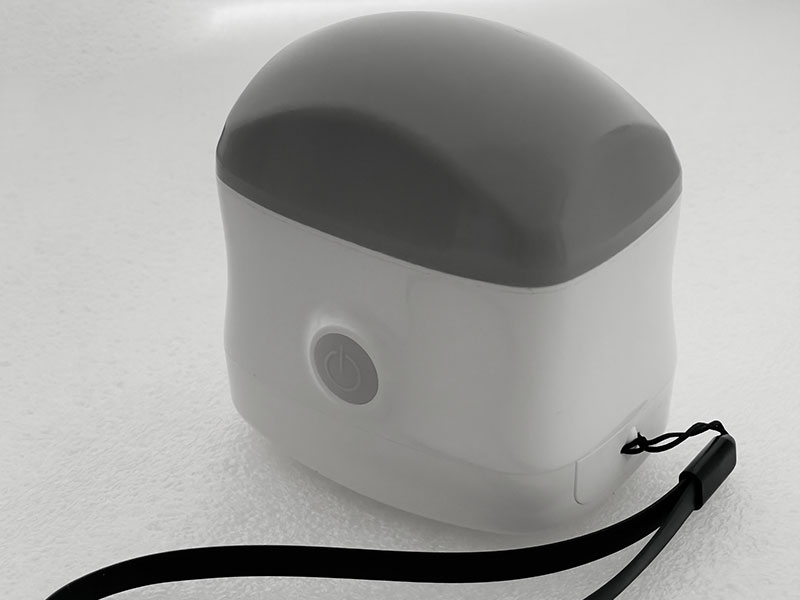

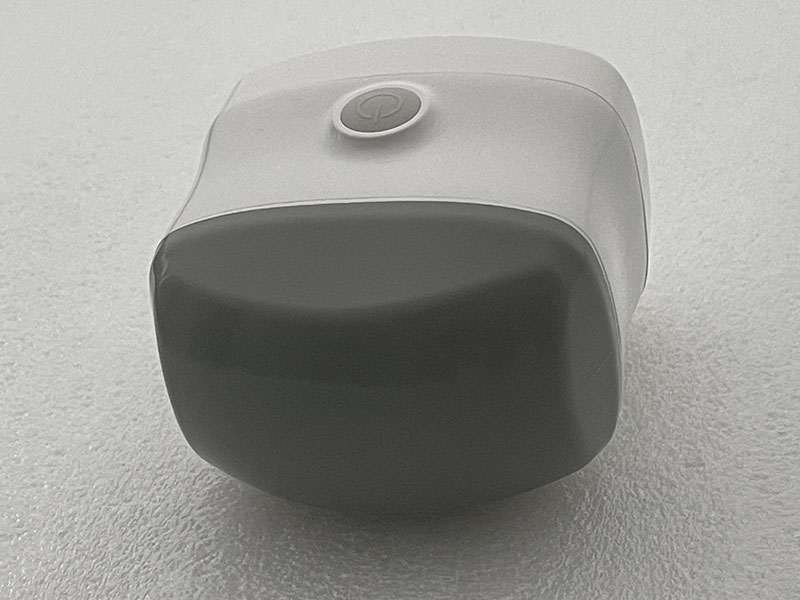

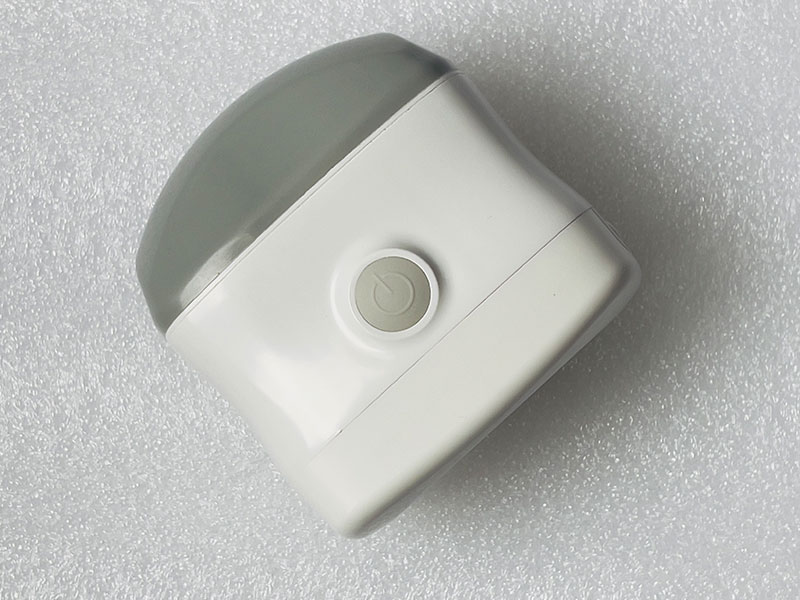

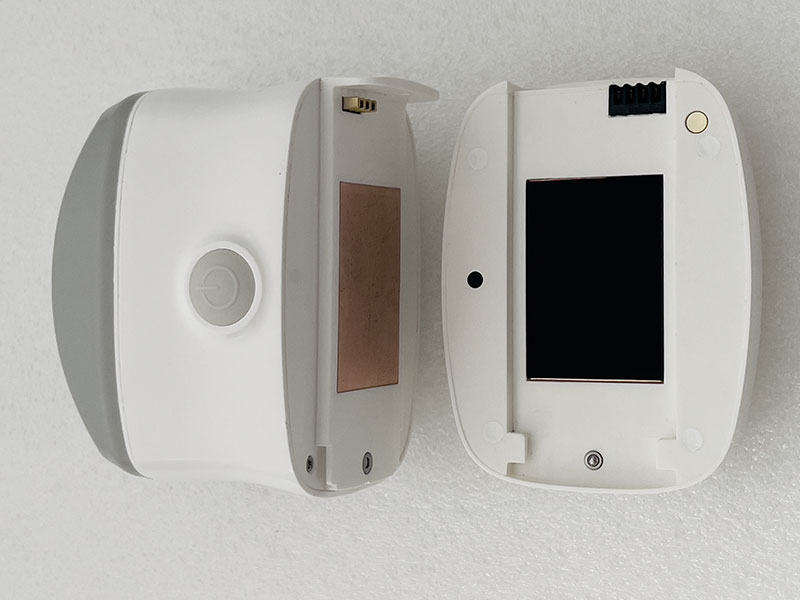

The handheld convex-array 3D imaging ultrasound system miniaturizes the previously high-end, large cart-based color Doppler ultrasound technology, enabling 3D imaging with a compact probe that connects to a smartphone or tablet.

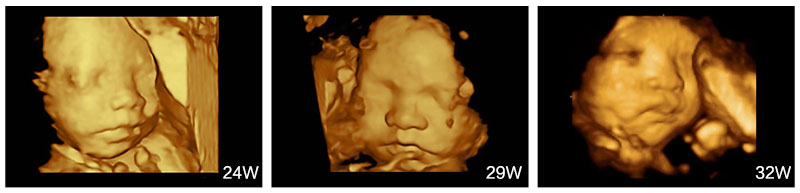

The product can be used as a convex array probe to obtain ultrasound images of the abdomen, fetus, and other areas, while also generating three-dimensional (3D) images for more convenient observation of abdominal organs and the fetus.

The product has significant application potential in hospitals, community health centers, and other settings, and is expected to enter households, maternity shops, and photography studios as a "fetal camera" for non-medical uses.

Product Technical Parameters:

• Elements: 96

• Channels: 32

• Frequency: 3.2MHz/4.0MHz

• Depth: 90/160/220/305mm

• Scanning angle: 60°

• Image/Video Storage: JPG, MP4, and DCM

• Battery: 2200mAh, removable and replaceable

• Battery operating time: Replaceable batteries, standard configuration includes 2 batteries, each lasting 1.5 hours

• Charging method: Charge via USB after removing the battery

• Display Mode: B, 3D

• 2D Image Adjustment: Gain (30-105dB), TGC Segmented Gain, Dynamic Range (30-105dB), Focusing, Depth, Harmonics, Noise Reduction

• 3D Image Adjustment: Rendering, Planes, Max cc (Maximum Connected Component), Gain, Threshold, Smoothness, Contrast, Brightness, Opacity, Section/Cross-section

• Measurement: Length, area, angle, obstetrics

• Wifi Type: Dual-band 802.11g/2.4G/5G 450Mbps

• Supported software systems: Apple iOS

• Dimensions: Length 86.4mm, Width 61mm, Height 115mm

• Weight: 325 grams

>>Catalog Download
