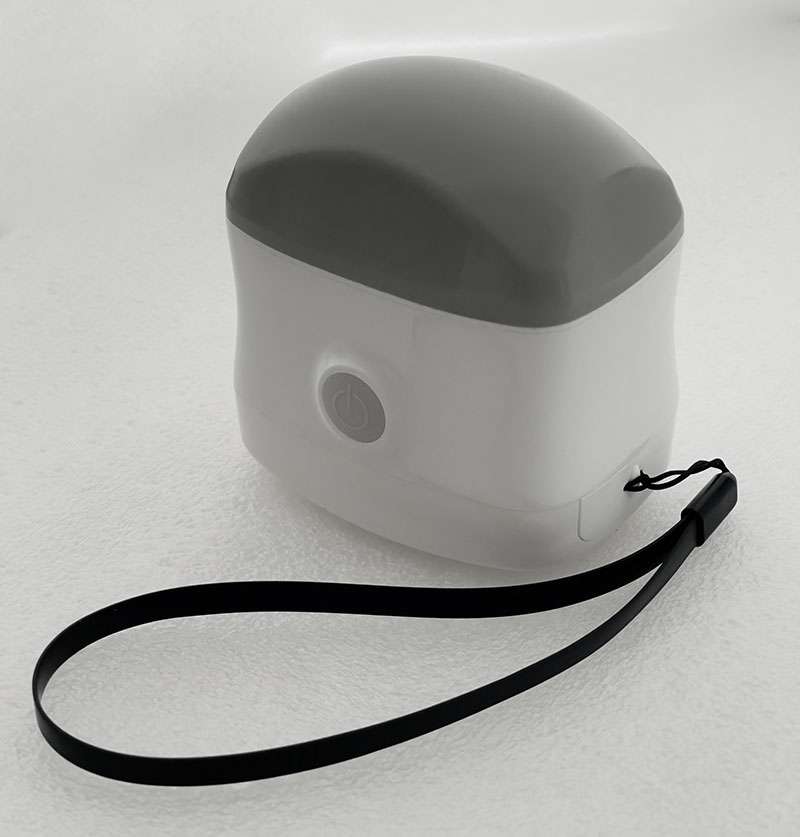

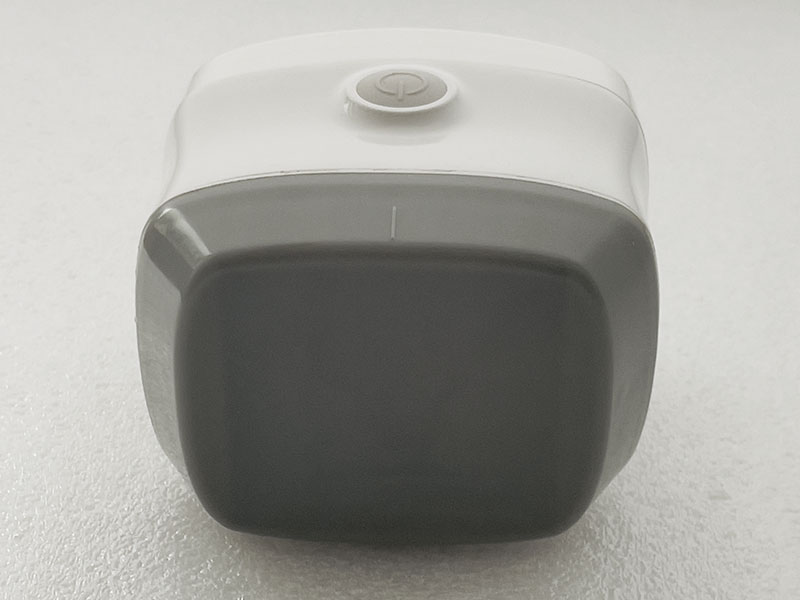

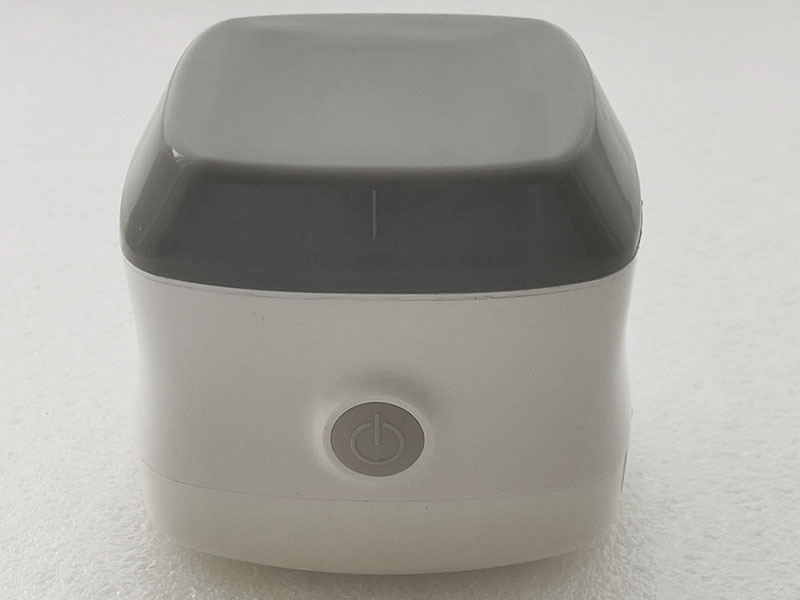

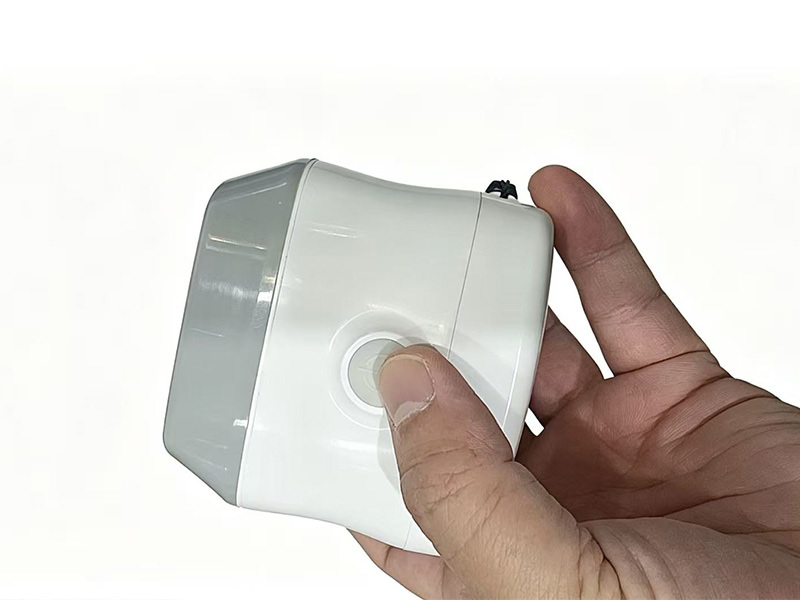

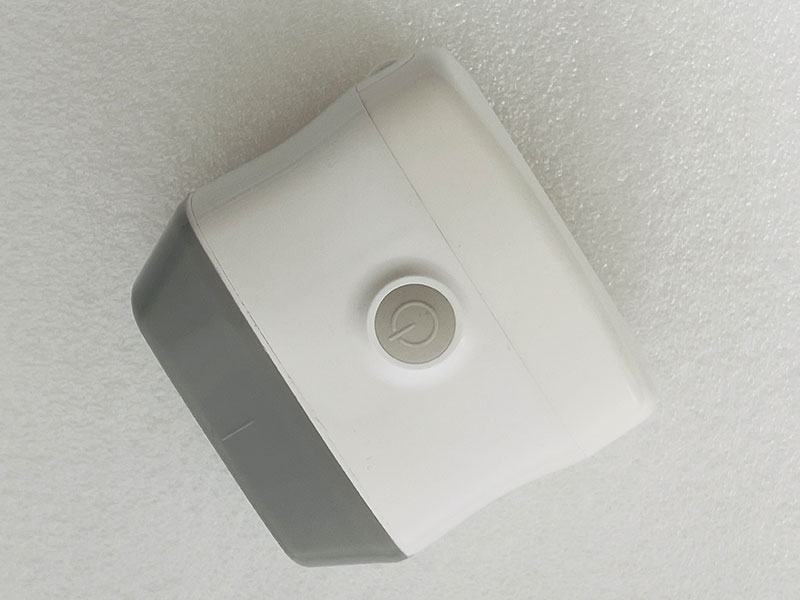

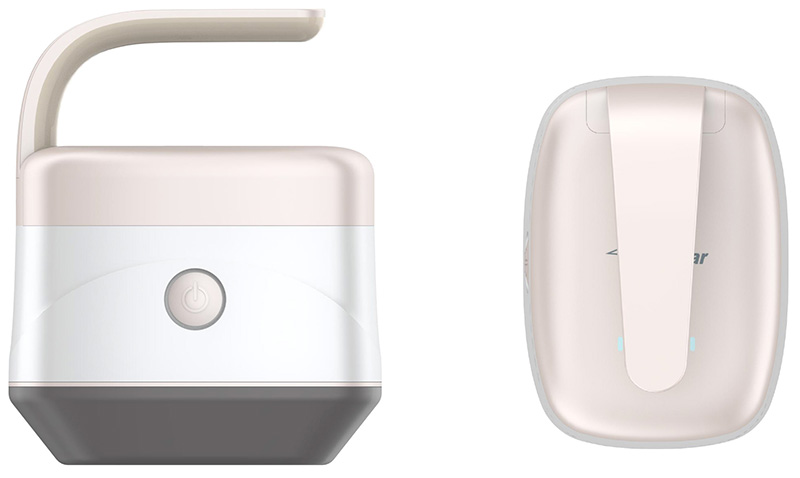

Linear array three-dimensional (3D) imaging handheld ultrasound miniaturizes the 3D imaging that originally required high-end large cart ultrasound into a small probe that can be connected to a mobile phone/tablet.

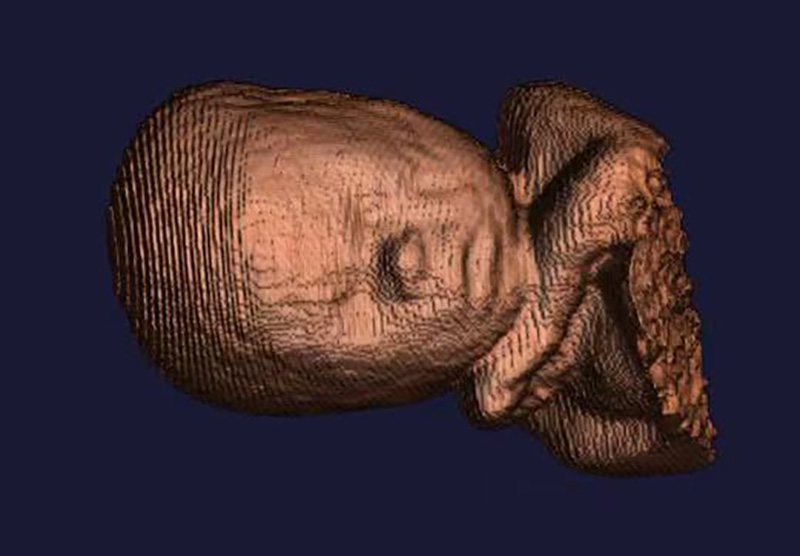

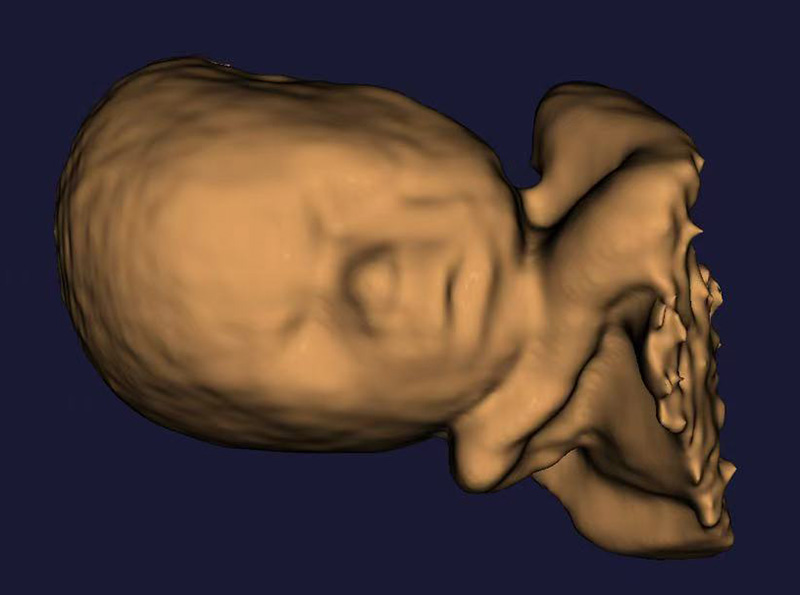

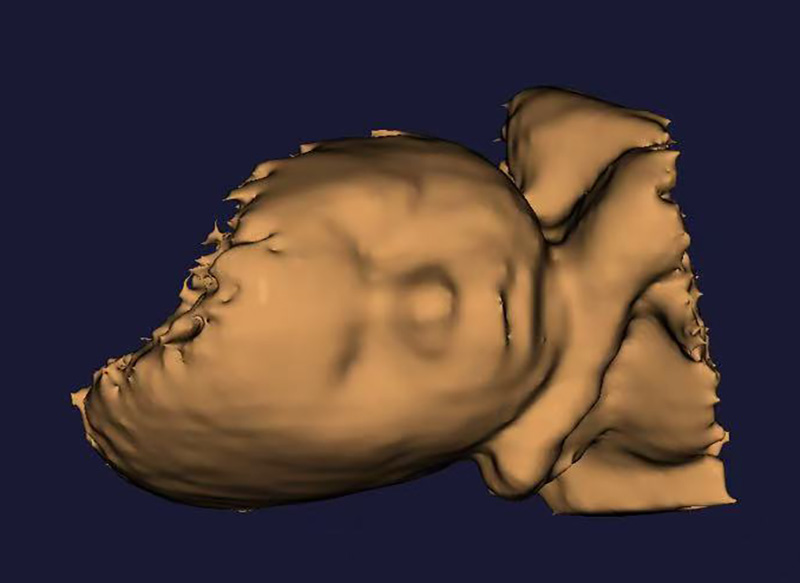

The product can be used as a linear array probe to obtain ultrasound images of superficial areas, and can also generate three-dimensional (3D) stereoscopic images for easier observation of the internal conditions of superficial muscles and soft tissues. For example, it can be used to better observe blood vessels, medical beauty facial fillers, etc.

The product has great potential for application in hospitals, community health centers, medical beauty institutions, etc.

Product Technical Parameters:

• Elements: 96

• Channels: 32

• Frequency: 7.5/10.0MHz

• Depth: 20/40/60/80mm

Scanning width: 40mm

• Image/video storage: jpg, mp4, and DCM

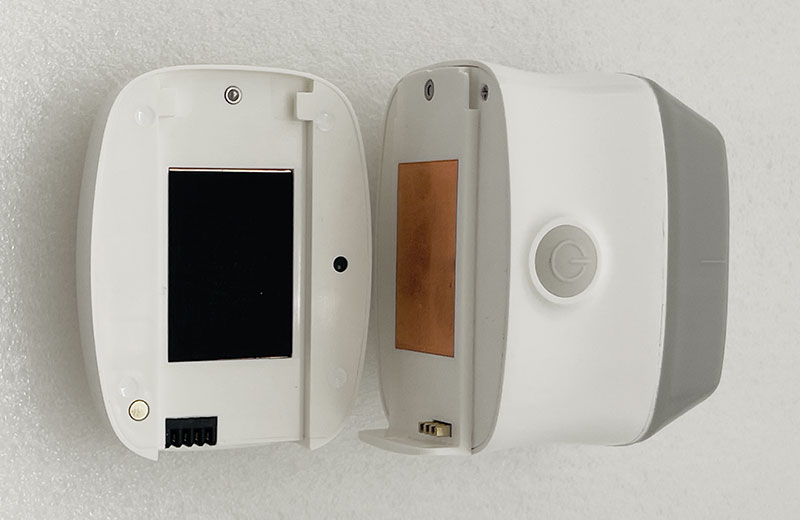

• Battery: 2200mAh, removable and replaceable

• Battery working time: replaceable battery, standard 2 batteries, each can work for 1.5 hours

• Charging method: After removing the battery, use USB to charge

• Display mode: B, 3D

2D image adjustment: gain (30-105dB), TGC segment gain, dynamic range (30-105dB), focus, depth, harmonics, noise reduction

3D Image Adjustment: Rendering, Planes, Max cc Maximum Connected Area, Gain, Threshold, Smoothness, Contrast, Brightness, Opacity, Cut/Section

• Measurement: length, area, angle, obstetrics

WiFi type: 802.11g/2.4G/5G dual band 450Mbps

• Support software system: Apple iOS

• Size: Length 86.4mm, Width 61mm, Height 115mm

• Weight: 325 grams

>>Catalog Download
