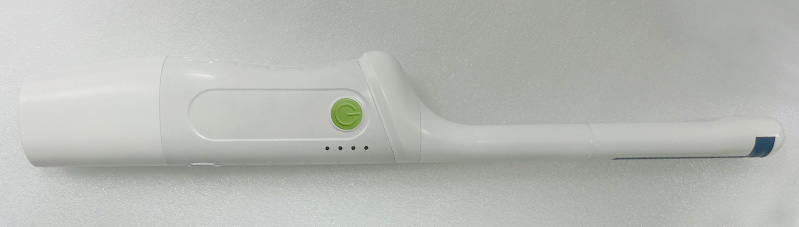

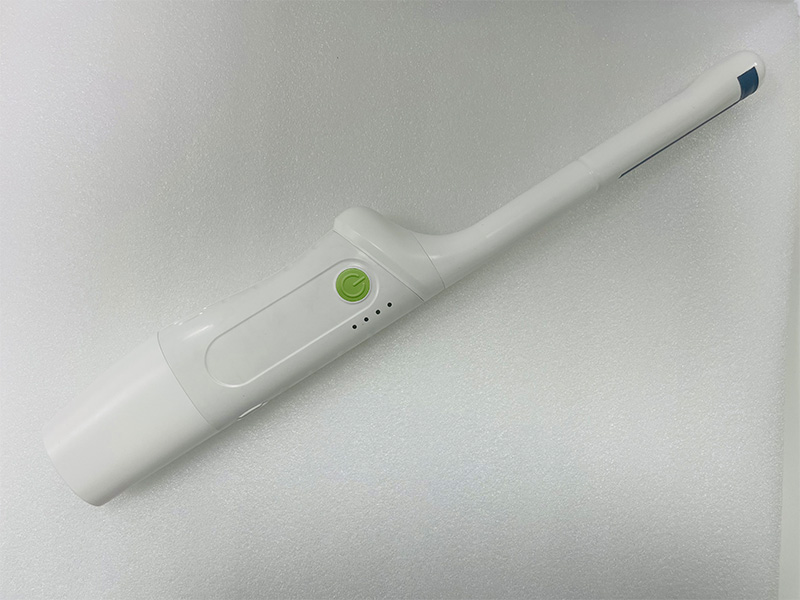

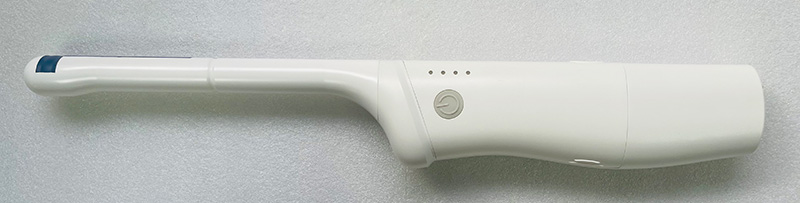

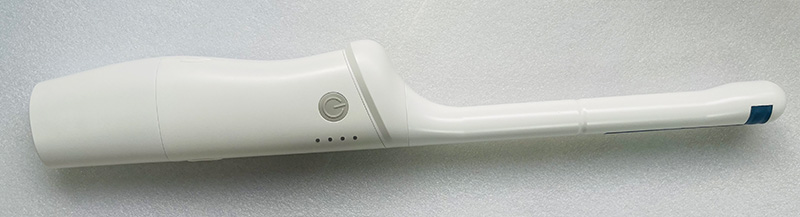

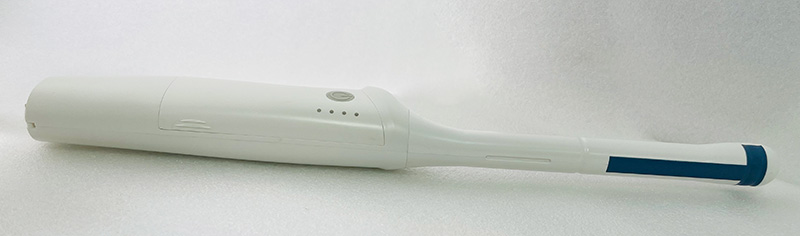

9CR

9CR Pro

-Scanning mode: Electronic array

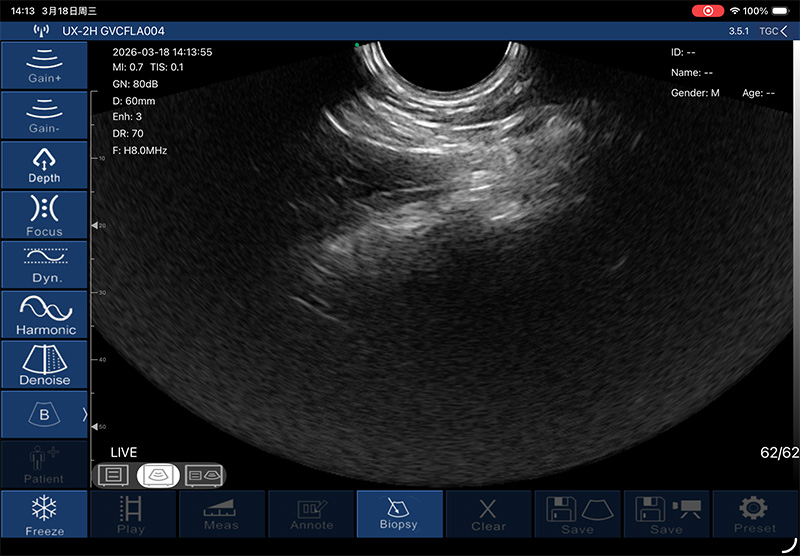

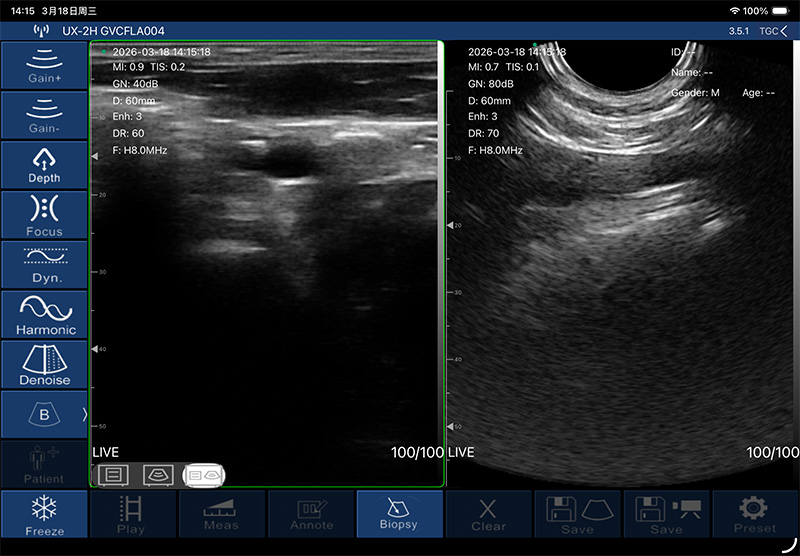

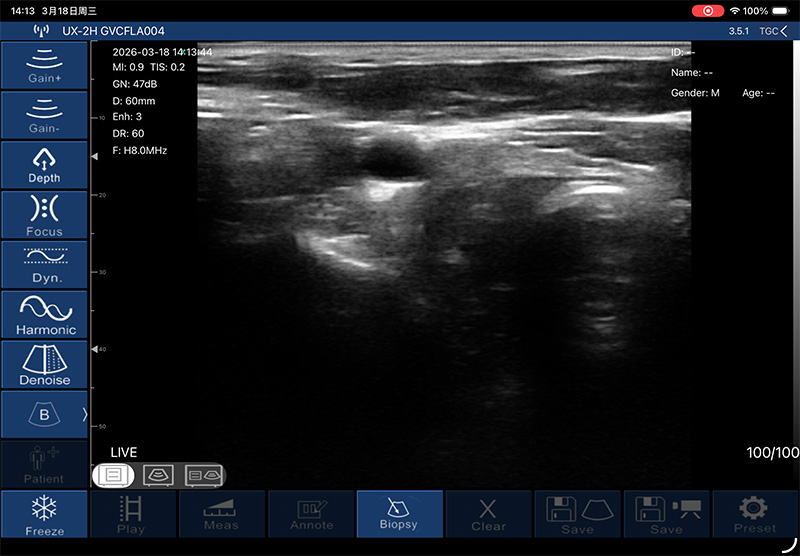

-Image mode: B, B/M, color, PW, PDI

-Frequency: 6.5/8MHz

-Elements: 192

-Channel: 64

-Scan Depth: 40-100mm

-Scan angle: R13

-Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

-Cineplay: auto and manual, frames can set as 100/200/500/1000

-Measure: Length, Area, Angle, Obstetrics

-Image frame rate: 18 frames/cond

-Image save format: jpg, mp4 and DCM

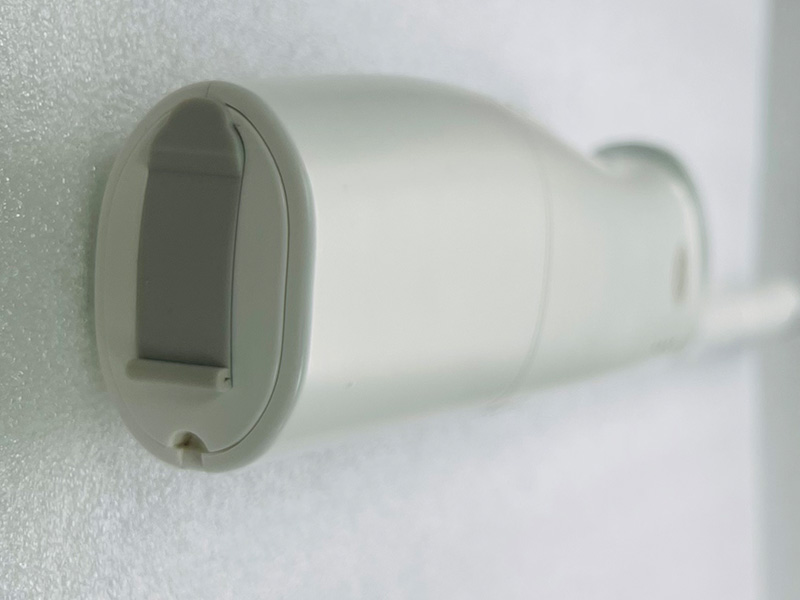

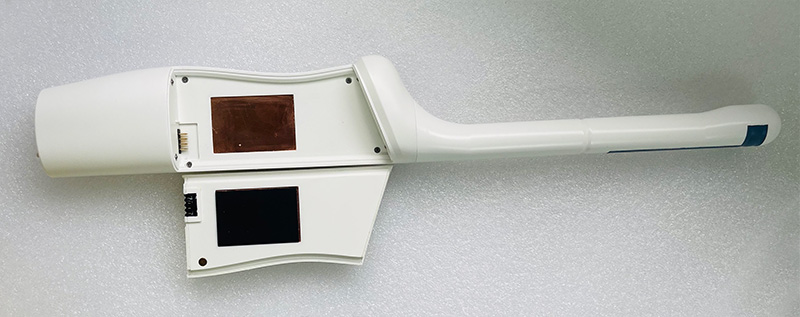

-Battery working time：standard configuration with 2 battery, per battery can work 1.5 hours

-Noise reduction: 0-1-2-3-4

-Dynamic Range: 40/50/60/70/80/90/100/110

-Puncture assist function: in-plane puncture guide line function, out-of-plane puncture guide function

-Charge: by USB, or optional wireless charger

-Size: 336mm×40mm×28mm

-Length: 230mm

-Gain: 30db-105db

-Wifi type: 802.11g/20MHz/5G/450Mbps

-Working system: Android/iOS

>>Catalog Download
